Barton Size 0 - 20mm Blocks

20mm Blocks - Size 0

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.
Available in Plain or Ball Bearing.

Sheave Dia Sheave Diameter: 20mm
(3/4")
Sheave Width Sheave Width 8mm
(5/16")
Rope Dia Maximum Rope Diameter: 5mm
(3/16")
SWL

Working Load (Plain):

275 kg
(606 lbs)
SWL Max Rolling Load (Ball): 130 kg
(286 lbs)
Break Load Break Load: 550 kg
(1210 lbs)



Plain Bearing Sheave Plain bearing blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Ball bearing Sheave

Ball bearing blocks
With a unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows for more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Barton Marine Logo

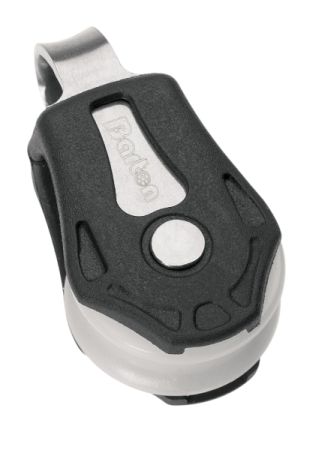

Single - Fixed Eye

Single Fixed Eye

Bearing Code Length Weight
Plain 00110 39mm 13g
Ball 10110 39mm 13g
Qty:

Single - Fixed Eye with Becket

Single Fixed Eye with Becket
Bearing Code Length Weight
Plain 00111 52mm 19g
Ball 10111 52mm 17g

Qty:

Single - Swivel Shackle

Single Swivel

Bearing Code Length Weight
Ball 10130 54mm 18g
Qty:

Double - Fixed Eye

Double Fixed Eye

Bearing Code Length Weight
Plain 00210 50mm 37g
Ball 10210 50mm 33g
Qty:

Double - Fixed Eye with Becket

Double Fixed Eye with Becket
Bearing Code Length Weight
Plain 00211 64mm 41g
Ball 10211 64mm 37g
Qty:

Tripple - Fixed Eye

Triple Fixed Eye

Bearing Code Length Weight
Plain 00310 51mm 55g
Ball 10310 51mm 48g
Qty:

Triple Fixed Eye with Becket

Triple Fixed Eye with Becket
Bearing Code Length Weight
Plain 00311 64mm 59g
Ball 10311 64mm 52g
Qty:

Single Cheek Block
(Screw Down)

Cheek Block

Bearing Code Length Weight
Ball 10160 55mm 15g
Qty:
