Barton Size 1 - 30mm Blocks

30mm Blocks - Size 1

A range of strong, lightweight blocks for use on dinghies and dayboats or a lead blocks on larger craft.
Available in Plain or Ball Bearing.

Sheave Dia Sheave Diameter: 30mm
(1 3/16")
Sheave Width Sheave Width 11mm
(7/16")
Rope Dia Maximum Rope Diameter: 8mm
(5/16")
SWL

Working Load (Plain):

350 kg
(771 lbs)
SWL Max Rolling Load (Ball): 245 kg
(540 lbs)
Break Load Break Load: 700 kg
(1543 lbs)



Block Head - Fixed Eye Block head - Reverse Shackle Blcok head - Swivel
Fixed Eye Reverse Shackle Swivel
Plain Attachment Eye Removable shackle allows easy attachment and can be mounted in-line or at 90° to the sheave Fully swiveling head with removable shackle for fast attachment
Plain Bearing Sheave Plain bearing blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Ball bearing Sheave

Ball bearing blocks
With a unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows for more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Barton Marine Logo

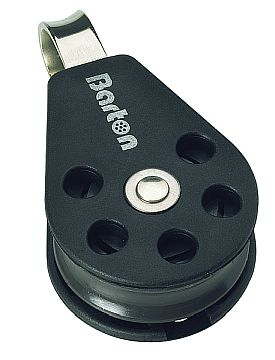

Single - Fixed Eye

Single Fixed Eye
Bearing Code Length Weight
Plain 01110 78mm 41g
Ball 11110 78mm 40g

Qty:

Single - Reverse Shackle

Single Reverse Shackle
Bearing Code Length Weight
Plain 01120 82mm 51g
Ball 11120 82mm 49g

Qty:

Single - Swivel

Single Swivel
Bearing Code Length Weight
Plain 01130 85mm 57g
Ball 11130 85mm 55g
Qty:

Single Reverse Shackle with Becket

Single Reverse Shackle with Becket
Bearing Code Length Weight
Plain 01121 93mm 56g
Ball 11121 93mm 55g
Qty:

Single Swivel with Becket

Single Swivel with Becket
Bearing Code Length Weight
Plain 01131 98mm 61g
Ball 11131 98mm 60g
Qty:

Double Reverse Shackle

Double Reverse Shackle
Bearing Code Length Weight
Plain 01220 83mm 77g
Qty:

Double Swivel

Double Swivel
Bearing Code Length Weight
Ball 11230 90mm 80g
Qty:

Lightweight Lead Block
(Low Load)


Bearing Code Length Weight
Plain 01160 55mm 20g
Qty:
